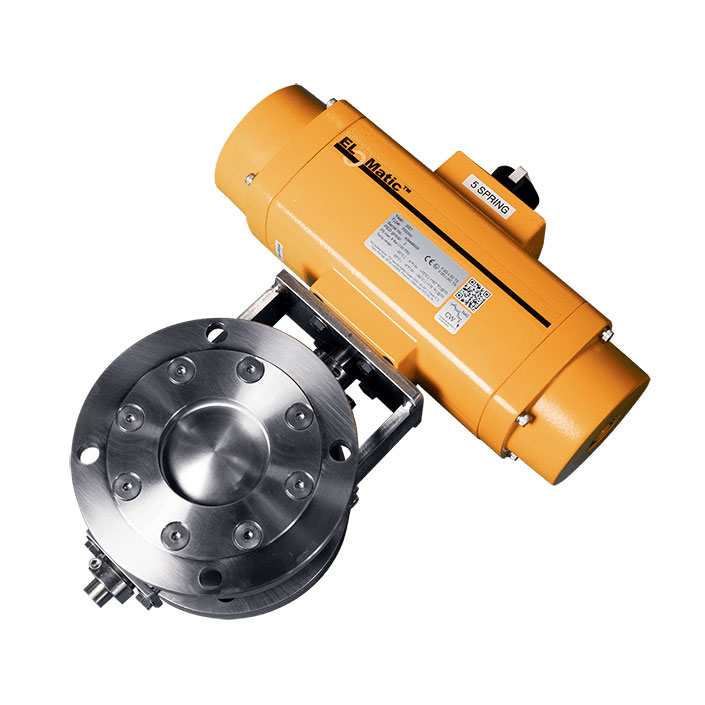

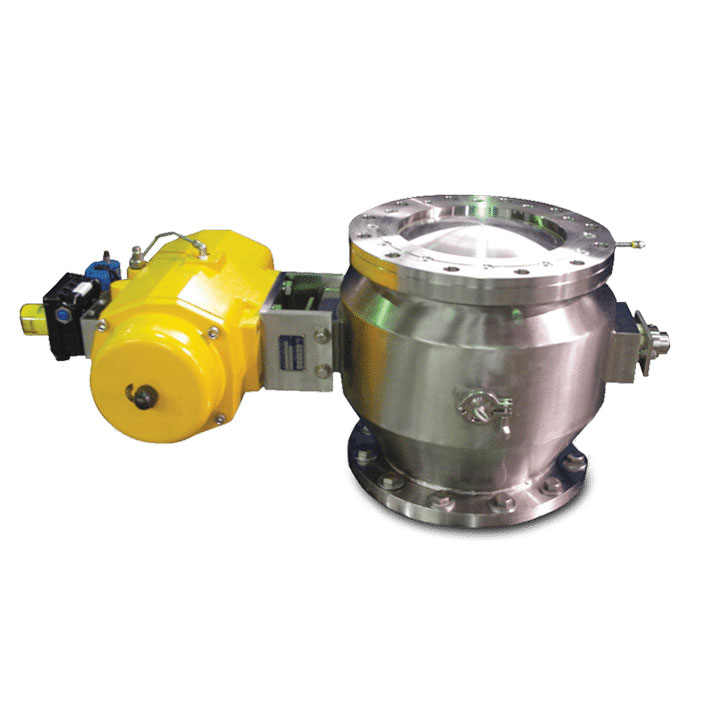

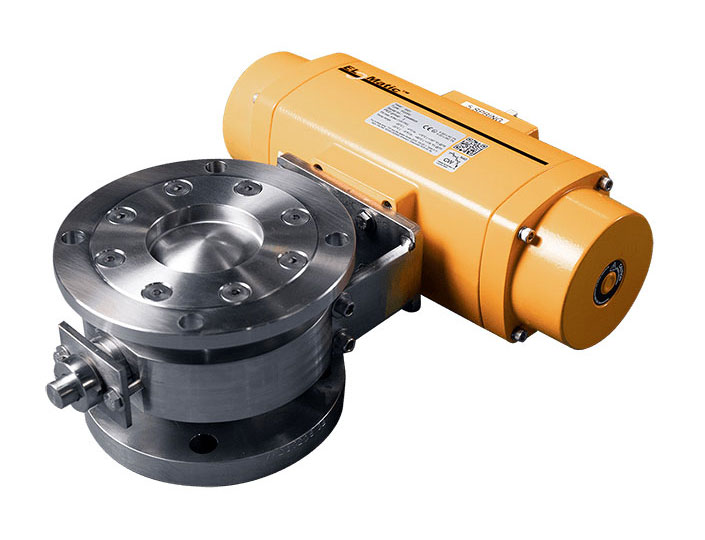

The P21 Valve is a High Performance Spherical Disc Valve designed to meet tomorrow’s demanding requirements for containment of solids, powders and slurries.
Applications:
Gemco Valves are made in the USA
Engineered for the most demanding applications in general chemical, pharmaceutical and most solids processing industries. The P21 Valve is designed to ASME standards for applications from full vacuum up to 10 barg (150 PSIg), over a range of temperatures up to 200°C (392°F), depending on the valve size. Higher pressures and temperatures are engineered to order. It is available in most alloys including carbon steel, stainless steel, Hastelloy and titanium. The P21 is offered with standard ANSI or DIN flanges and ISO actuator mounting. It can be configured with a solid reinforced Teflon (RPTFE) seat, metal seat for or inflatable seat for bi-directional ANSI Class VI sealing. Options include the full range of sanitary finishes and clean-in-place (CIP) spray balls or nozzles.

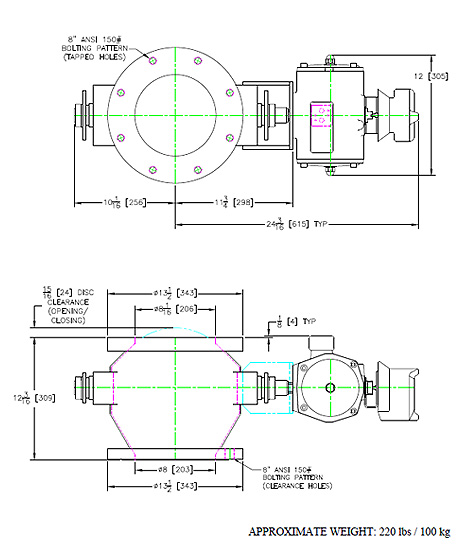

Click on the desired size to view / download PDF drawing with specifications
| Size | Download |
|---|---|
| 03 inches / 75 mm | PDF | 2D.dwg | 3D.step |
| 04 inches / 100 mm | PDF | 2D.dwg | 3D.step |
| 06 inches / 150 mm | PDF | 2D.dwg | 3D.step |
| 08 inches / 200 mm | PDF | 2D.dwg | 3D.step |
| 10 inches / 250 mm | PDF | 2D.dwg | 3D.step |
| 12 inches / 300 mm | PDF | 2D.dwg | 3D.step |
| 14 inches / 350 mm | PDF | 2D.dwg | 3D.step |
| 16 inches / 400 mm | PDF | 2D.dwg | 3D.step |
| 20 inches / 500 mm | PDF | 2D.dwg |
| 24 inches / 600 mm | PDF | 2D.dwg |
